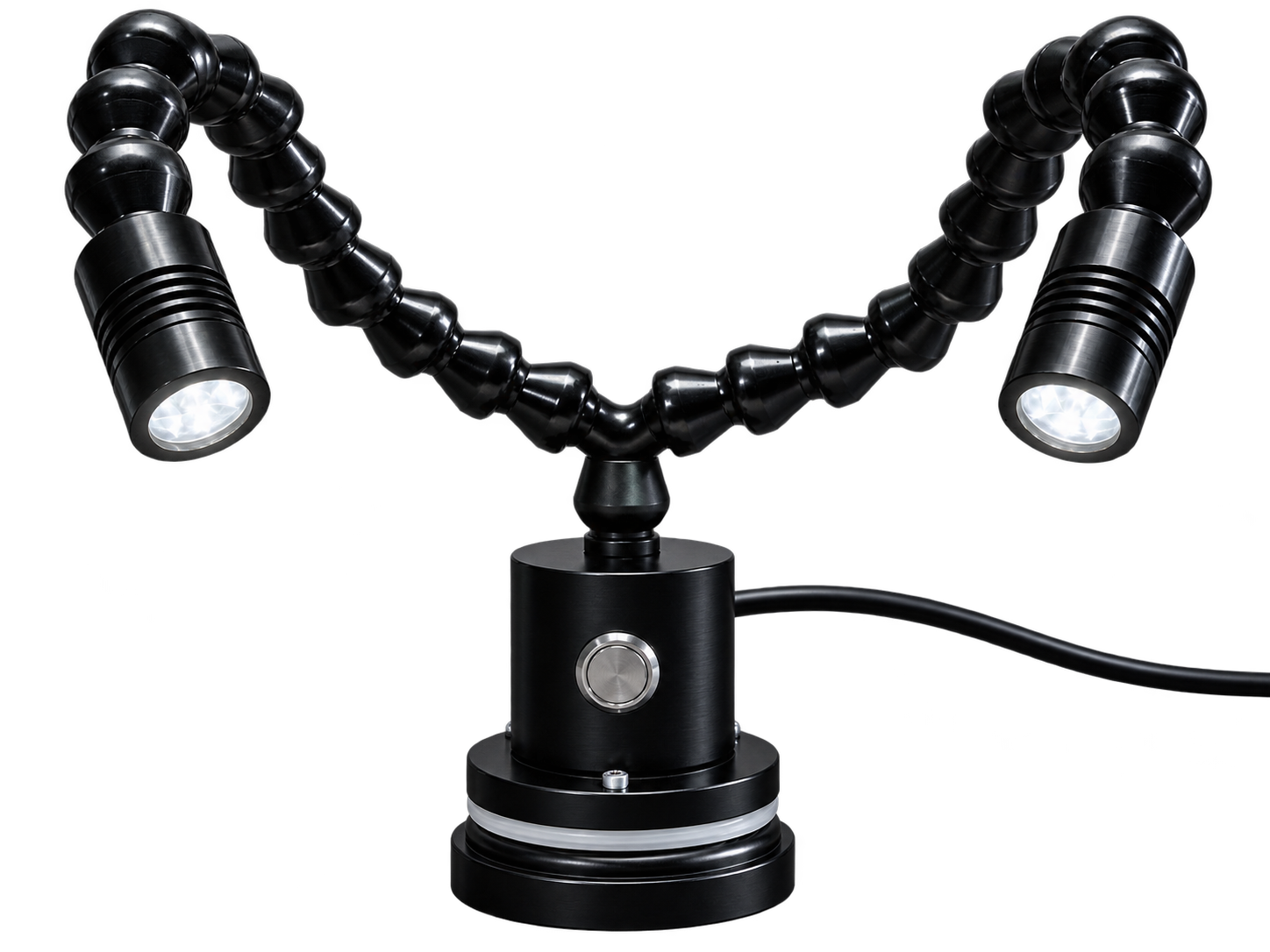

Series 66 - Flexible tube light with 428 lumens Flexible task light with 40° beam angle The clear, cool light color with a color temperature of 5000K provides excellent lighting that ensures true-color illumination for every job. The powerful 6 W SOPN-MSZ503-NB/NM LED unit delivers an impressive 428 lumens and has lens optics with a beam angle of 40°, which guarantees uniform illumination. A particular advantage of the 66 series is the flexible gooseneck. This offers a high degree of adaptability as it can be bent into any desired position. This allows the light to be directed exactly where it is needed, enabling precise and individual illumination of the workplace. The flexible gooseneck also makes it easier to handle and adjust the luminaire without the need for fixed brackets or complicated adjustments. This makes the light particularly practical and versatile for use in different working environments. Technical data Light source: 6 watt LED SOPN-MSZ503-NB/NM For fixed mounting or mounting with magnetic base Approx. 40 cm long gooseneck Power consumption: 6 watts Light output: 428 lumens Color temperature 5,000 Kelvin Lumen/Watt: 71 IP54 RATING

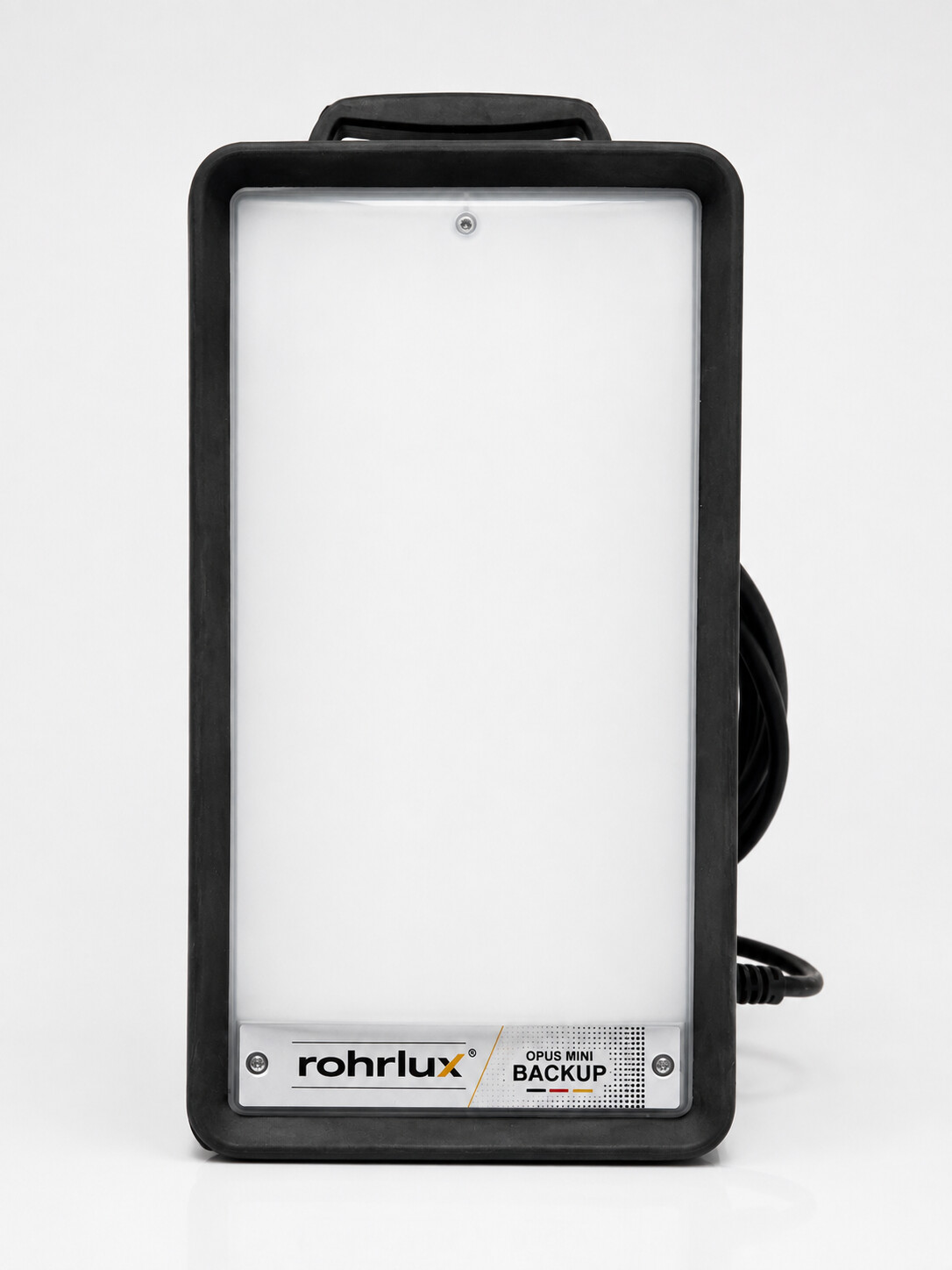

LED unit with 90 long-life high-performance SMD LEDs Beam angle 120° Color temperature 5000 K Light output 3800 lumen 5591 Lux at 0.5 m Electronic LED driver 0/50-60 Hz Housing in two-component plastic (2K) gray/black Front panel: opal plastic glass Supply cable 5000 mm H07BQ-F 3Gx1.5mm² with safety plug On/off switch Reset button for afterglow function Afterglow time 1.5 hours Surface-mounted socket outlet (black) with hinged cover Protection class I IP 54, IK 08 Country of origin Germany Packaging unit 4 pieces / 80 pieces

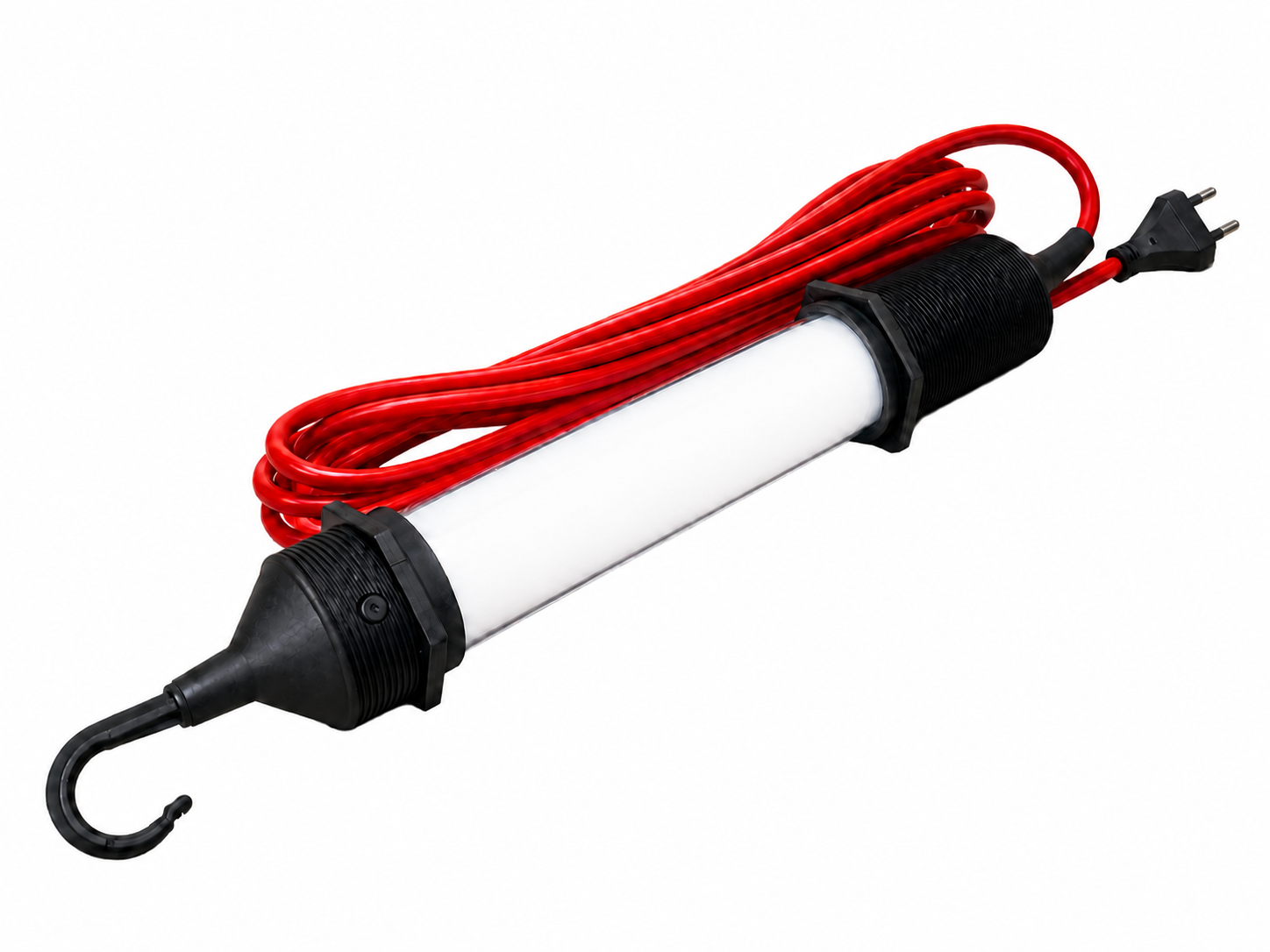

Technical data: Driver (ECG), Pv=1.9 Watt, plated through with E-fuse Replaceable LED unit (5-year guarantee) with 20 high-performance LEDs Light output: 618 lumen = 1022 lux at 0.5 m = luminous efficacy 78 lm/W Power consumption: 6 watts Beam angle 104° Color temperature 4200 K Supply cable 5 m H05BQ-F 2x1mm² red with contour plug Protection class II IP 64, IK 08 Design protection Gsm 737440 Country of origin Germany

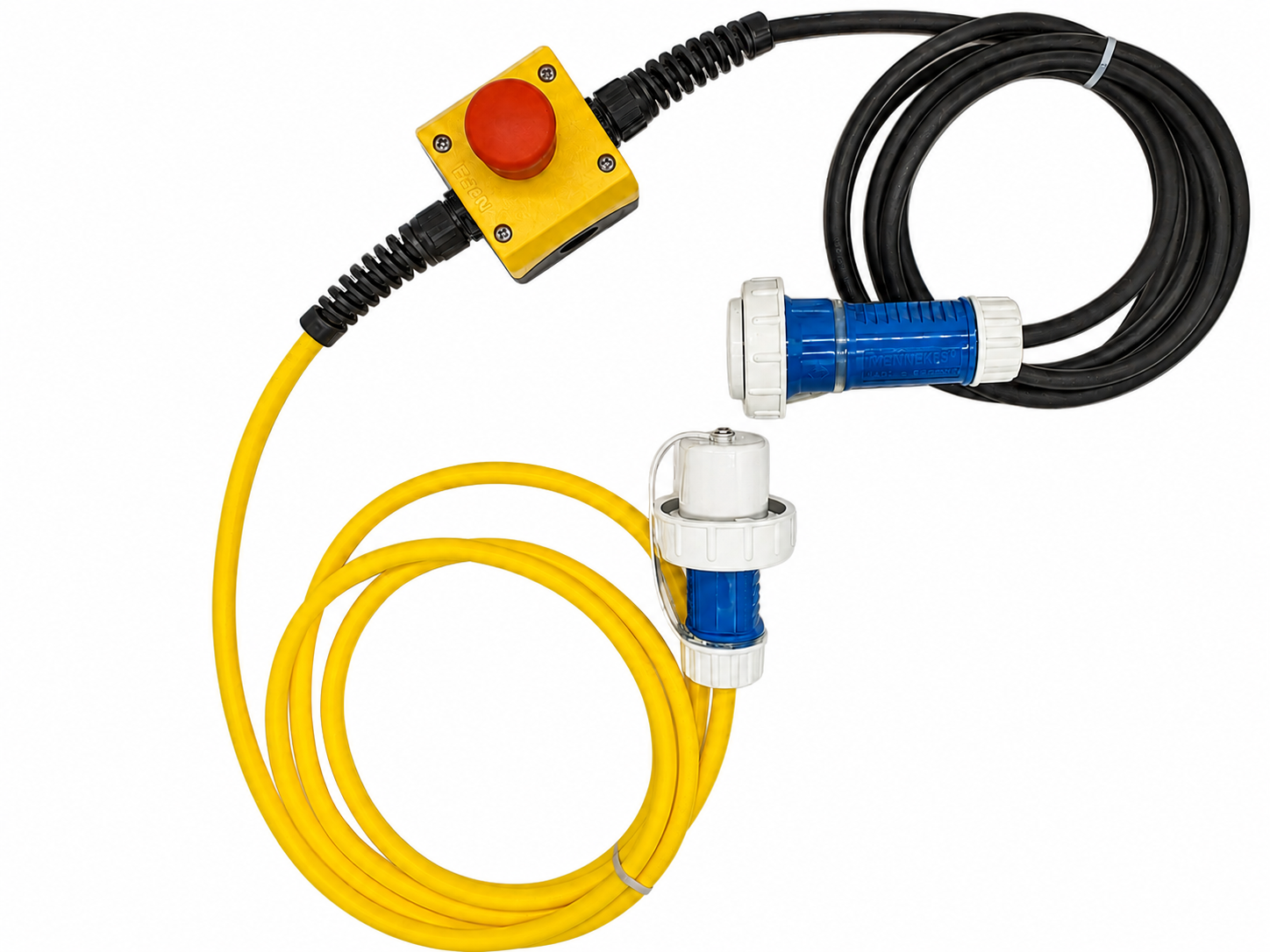

5 meter connection cable H07RN-F 3G1,5²mm Side 1: Schuko coupling socket with bayonet cover, IP 68, 16Amp, 230 Volt Side 2: Schuko plug with bayonet ring, IP 68, 16Amp, 230 Volt Emergency / Off switch (IP66 /IP69) - placed in the middle

LED unit with 90 long-life high-performance SMD LEDs Beam angle 120° Color temperature 5000 K Light output 3800 lumen 5591 Lux at 0.5 m Electronic LED driver 0/50-60 Hz Housing in two-component plastic (2K) gray/black Front panel: opal plastic glass Supply cable 5000 mm H07BQ-F 3Gx1.5mm² with safety plug On/off switch Reset button for afterglow function Afterglow time 1.5 hours Surface-mounted socket outlet (black) with hinged cover Protection class I IP 54, IK 08 Country of origin Germany Packaging unit 4 pieces / 80 pieces
