Series 32 - The industrial and machine luminaire with high-power LED

The Series 32 combines the advantages of proven Rohrlux quality with those of state-of-the-art LED technology.

The highlight of the 32 series is the enormous light output with compact dimensions. The light is optimally distributed with the aid of a diffuse cover. The typical LED glare is avoided as far as possible, which drastically increases safety at the workplace.

The Series 32 is also characterized by low heat generation and absolutely flicker-free, uniform light. In the CAB versions, the luminaires are absolutely insensitive to shocks and vibrations.

The protective tubes are optionally available in borosilicate glass or in largely emulsion-resistant CAB plastic.

Since the diameter of the luminaires corresponds to that of the Series 31, for example, existing luminaires can be replaced quickly and at low cost. The robust construction allows even the roughest application in almost any area.

The LED drivers are integrated, the connection is made via the quick-connect module. The luminaires are basically through-wired and can be used as single luminairesas well as through-luminaires.

Special designs and customized versions are available on request.

25 Watt / 110-277 Volt / 680 mm / 4000K

- Length: 680mm- Diam.: 68mm- Light output: 2204 lumen (96 lm/W) = 2824 lux at 0.5 m- Beam angle 120°- Color temperature 4000 K - Protective tube made of CAB clear- Two brackets H5- Temperature range - 25° / + 40°C- Average service life: 40000 operating hours- Protection class I- IP 67- IK 09- Country of origin Germany

€0.00*

25 watts / 110-277 volts / 680 mm / 4000K / borosilicate

- Length: 680mm- Diam.: 68mm- light output: 2204 lumen (96 lm/W) = 2824 lux at 0.5 m- beam angle 120°- color temperature 4000 K - protective tube made of borosilicate glass- two brackets H6 with rubber sleeve- temperature range - 25° / + 40°C- average service life: 40000 operating hours- protection class I- IP 67- country of origin Germany

€0.00*

33 Watt / 110-277 Volt / 959 mm / 4000K

- Length 959mm- Diam. 68mm- light output: 3255 lumen (100 lm/W) = 4150 lux at 0.5 m- beam angle 120°- color temperature 4000 K - protective tube made of CAB (cellulose aceto butyrate)- two brackets H5- temperature range - 25° / + 40°C- average service life: 40000 operating hours- protection class I- IP 67- IK 09- country of origin Germany

€0.00*

33 watts / 110-277 volts / 959 mm / 4000K / borosilicate

- Length: 959mm - Diam.: 68mm- Light output: 3255 lumen (100 lm/W) = 4150 lux at 0.5 m- Beam angle 120°- Color temperature 4000 K - Protective tube made of borosilicate glass- Two brackets H6 with rubber sleeve- Temperature range - 25° / + 40°C- Average service life: 40000 operating hours- Protection class I- IP 67- Country of origin Germany

€0.00*

43 Watt / 110-277 Volt / 1240 mm / 4000K

- Length: 1240mm - Diam.: 68mm- Light output: 4479 lumen (105 lm/W) = 5710 lux at 0.5 m- Beam angle 120°- Color temperature 4000 K - Protective tube made of CAB (Cellulose Aceto Butyrate) clear- Two brackets H5- Temperature range - 25° / + 40°C- Average service life: 40000 operating hours- Protection class I- IP 67- IK 09- Country of origin Germany

€0.00*

43 watts / 110-277 volts / 1240 mm / 4000K / borosilicate

- Length: 1240mm - Diam.: 68mm- light output: 4479 lumen (105 lm/W) = 5710 lux at 0.5 m- beam angle 120°- color temperature 4000 K - protective tube made of borosilicate glass- two brackets H6 with rubber sleeve- temperature range - 25° / + 40°C- average service life: 40000 operating hours- protection class I- IP 67- country of origin Germany

€0.00*

53 Watt / 110-277 Volt / 1518 mm / 4000K

- Length: 1518mm - Diam.: 68mm- light output: 5563 lumen (106 lm/W) = 7065 lux at 0.5 m- beam angle 120°- color temperature 4000 K - protective tube made of CAB (cellulose aceto butyrate)- two brackets H5- temperature range - 25° / + 40°C- average service life: 40000 operating hours- protection class I- IP 67- IK 09- country of origin Germany

€0.00*

53 watts / 110-277 volts / 1518 mm / 4000K / borosilicate

- Length: 1518mm- Diam.: 68mm- light output: 5563 lumen (106 lm/W) = 7065 lux at 0.5 m- beam angle 120°- color temperature 4000 K - protective tube made of borosilicate glass- two brackets H6 with rubber sleeve- temperature range - 25° / + 40°C- average service life: 40000 operating hours- protection class I- IP 67- country of origin Germany

€0.00*

66 Watt / 110-277 Volt / 1802 mm / 4000K

- Length: 1802mm - Diam.: 68mm- Light output: 6605 lumen (105 lm/W) = 8444 lux at 0.5 m- Beam angle 120° - Color temperature 4000 K - Protective tube made of CAB (cellulose aceto butyrate)- Through-wiring with sealing closure- Three brackets H5- Temperature range - 25° / + 40°C- Average service life: 40000 operating hours- Protection class I- IP 67- IK 09- Country of origin Germany

€0.00*

66 Watt / 110-277 Volt / 1802mm / 4000K / borosilicate

- Length: 1802mm- Diam.: 68mm- light output: 6605 lumen (105 lm/W) = 8444 lux at 0.5 m- beam angle 120° - color temperature 4000 K - protective tube made of borosilicate glass- through-wiring with sealing closure- three brackets H6 with rubber sleeve- temperature range - 25° / + 40°C- average service life: 40000 operating hours- Protection class I- IP 67- Country of origin Germany

€0.00*

Tip

Series 32 machine light: 23 watts/ 220-240 volts/ 680 mm/ 4000K

Length 680 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz and LED unit with diffuser cover Light output: 2204 lumen (96 lm/W) = 2824 lux at 0.5 m Beam angle 120° Color temperature 4000 K Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two H5 brackets Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I, IP 67, D, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€9.00*

Series 32: 06 Watt/ 220-240 Volt/ 260 mm/ 4000K (end light, no DU)

Length 260 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz and LED unit with diffuser cover Beam angle 120° Color temperature 4000 K Clear CAB (cellulose aceto butyrate) protective tube Two brackets H5 Temperature range - 25° / + 35°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 09 Watt/ 12-24 Volt AC/DC/ 315 mm/ 4000K

Length 315 mm diam. 68 mm Driver 12-24 Volt AC/DC LED unit Light output: approx. 810 lumen/ 1,040 lux at 0.5 m Beam angle 120° Color temperature 4000 K Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two H5 brackets Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class III IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 11 Watt/ 24-42 Volt AC/DC/ 397 mm/ 4000K

Length 397 mm Diameter 68 mm LED constant current driver 24- 42 VAC/DC Beam angle 120° Color temperature 4000 K Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two brackets H5 Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class III IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 11 watts / 24-42 volts AC/DC / 397 mm / 4000K / borosilicate

Length 397 mm Diameter 68 mm LED constant current driver 24- 42 VAC/DC Beam angle 120° Color temperature 4000 K Clear borosilicate glass protective tube Through-wiring with sealing closure Two H6 brackets with rubber sleeve Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class III IP 67 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 13 W/ 220-240 V w. interference suppression filter/ 397mm / 4000K / borosilicate

Length 397 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 1158 lumen (93 lm/W) = 1480 lux at 0.5 m Beam angle 120° Color temperature 4000 K Special interference suppression filter for driver Protective tube made of borosilicate glass Through-wiring with sealing closure Two H6 brackets with rubber sleeve Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 13 Watt / 220-240 Volt / 397 mm / 4000K

Length 397 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 1158 lumen (93 lm/W) = 1480 lux at 0.5 m Beam angle 120° Color temperature 4000 K Clear CAB (cellulose aceto butyrate) protective tube Through-wiring with sealing closure Two H5 brackets Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces " CAD Download

€0.00*

Series 32: 13 Watt / 220-240 Volt / 397 mm / 5000K

Length 397 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 1158 lumen (93 lm/W) = 1480 lux at 0.5 m Beam angle 120° Color temperature 5000 K Clear CAB (cellulose aceto butyrate) protective tube Through-wiring with sealing closure Two H5 brackets Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 13 Watt / 220-240 Volt w. interference suppression filter / 397 mm / 4000K

Length 397 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 1158 lumen (93 lm/W) = 1480 lux at 0.5 m Beam angle 120° Color temperature 4000 K Special interference suppression filter for driver Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two brackets H5 Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

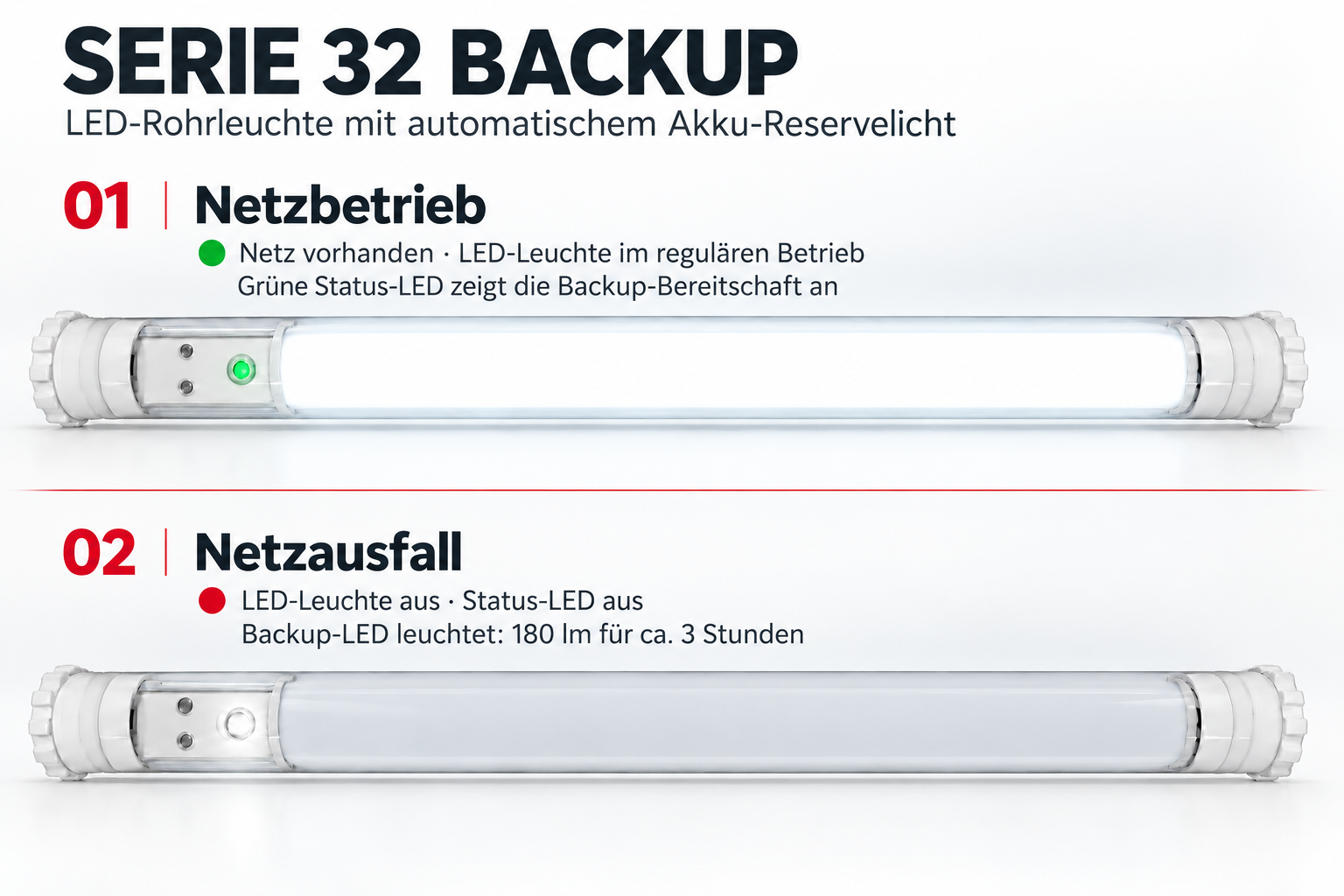

Series 32: 13 Watt/ 220-240 Volt/ 680 mm/ 4000K

Length 680 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Beam angle 120° Color temperature 4000 K 1200 lumen Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure incl. 2 H5 brackets Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece

€0.00*

Series 32: 13 watts / 220-240 volts / 397 mm / 4000K / borosilicate

Length 397 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 1158 lumen (93 lm/W) = 1480 lux at 0.5 m Beam angle 120° Color temperature 4000 K Protective tube made of borosilicate glass Through-wiring with sealing closure Two H6 brackets with rubber sleeve Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67 Country of origin Germany Packaging unit 1 piece

€0.00*

Series 32: 21 Watt / 24-42 Volt AC/DC / 680 mm / 4000K

Length 680 mm Diameter 68 mm LED constant current driver 24- 42 V AC/DC Beam angle 120° Color temperature 4000 K Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two brackets H5 Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class III IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 21 watts / 24-42 volts AC/DC / 680 mm / 4000K / borosilicate

Length 680 mm Diameter 68 mm LED constant current driver 24- 42 VAC/DC Beam angle 120° Color temperature 4000 K Protective tube made of borosilicate glass Through-wiring with sealing closure Two H6 brackets with rubber sleeve Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class III IP 67 Country of origin Germany Packaging unit 1 piece / 4 pieces

€0.00*

Series 32: 23 Watt / 220-240 Volt / 680 mm / 4000K m. Interference suppression filter

Length 680 mm Diameter 68 mm Driver 220-240 Volt AC 50-60 Hz Light output: 2204 lumen (96 lm/W) = 2824 lux at 0.5 m Beam angle 120° Color temperature 4000 K Special interference suppression filter for driver Protective tube made of CAB (cellulose aceto butyrate) Clear Through-wiring with sealing closure Two brackets H5 Temperature range - 25° / + 40°C Average service life: 40000 operating hours Protection class I IP 67, IK 09 Country of origin Germany Packaging unit 1 piece / 4 pieces

€1.00*
