Industrial tube luminaires
Series 32 (Power LED - ⌀ 63 mm)

Series 32: 21 watts / 24-42 volts AC/DC / 680 mm / 4000K / borosilicate

Series 32: 21 watts / 24-42 volts AC/DC / 680 mm / 4000K / borosilicate

€0.00*

Prices incl. VAT plus shipping costs

Product number: 3202133-10
Series 32: 21 watts / 24-42 volts AC/DC / 680 mm / 4000K / borosilicate
  • Length 680 mm
  • Diameter 68 mm
  • LED constant current driver 24- 42 VAC/DC
  • Beam angle 120°
  • Color temperature 4000 K
  • Protective tube made of borosilicate glass
  • Through-wiring with sealing closure
  • Two H6 brackets with rubber sleeve
  • Temperature range - 25° / + 40°C
  • Average service life: 40000 operating hours
  • Protection class III
  • IP 67
  • Country of origin Germany
  • Packaging unit 1 piece / 4 pieces
Electrical linkability: Cassadable (incl. through-wiring)
Length (in mm): 401 -> 800 mm
Protective tube material: BORO klar (Borosilicatglas) Ø 65 mm
Voltage: 24 Volt AC, 24 Volt DC, 24-42 Volt AC/DC, 42 Volt AC

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Product number: 3202133-10
Product number: 3202133-10

€0.00*

Prices incl. VAT plus shipping costs

Product number: 3202133-10

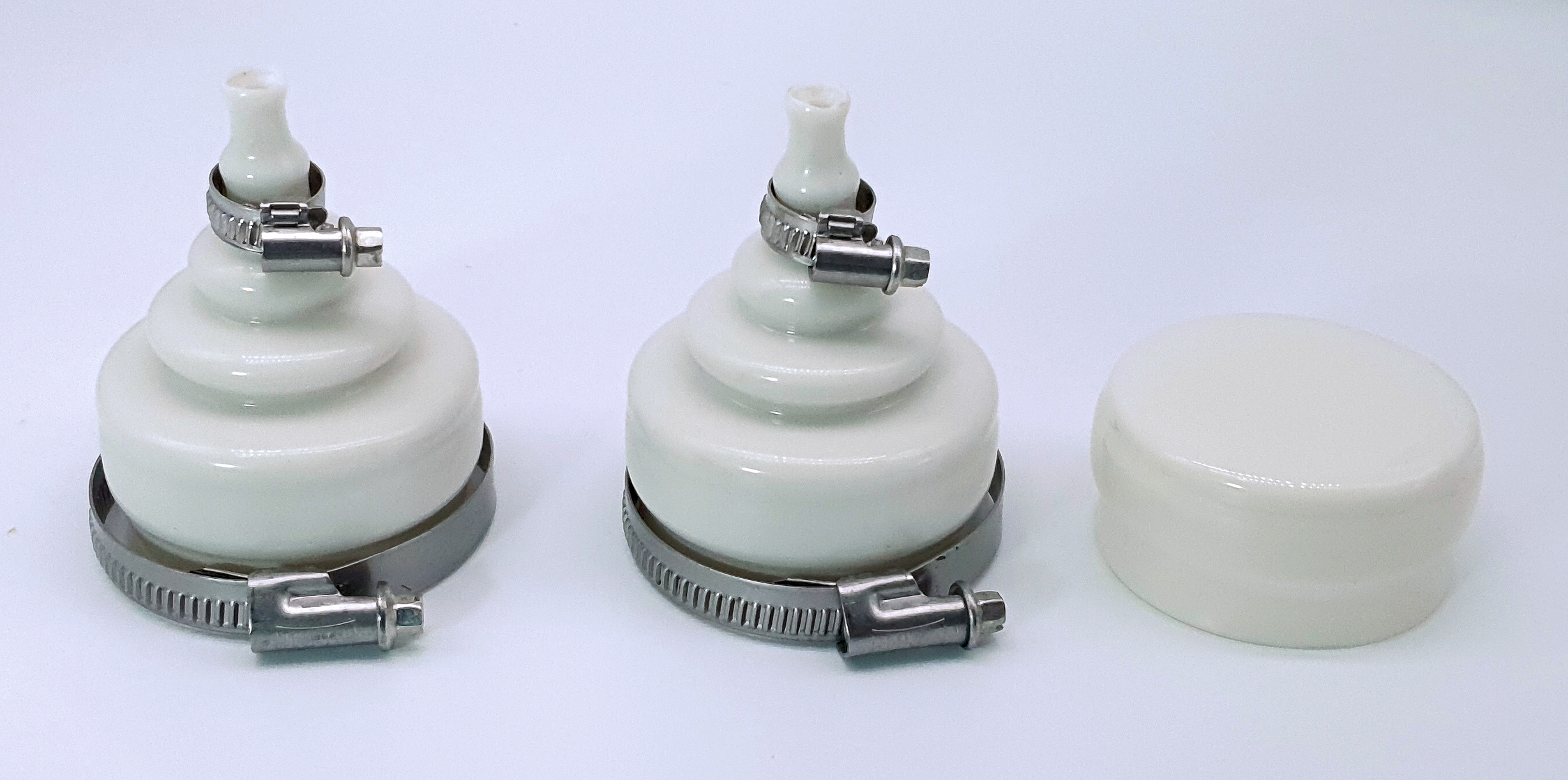

IP67 sealing set 2xDU + 1xEnd for 30/31/32/35
IP67 sealing set 2xDU + 1xEnd for 30/31/32/35
Assembly group bellows 2x passage and 1x end piece (for IP67 upgrade) with five clamps W5 for machine lights with diameter 68 mm Colour white

€0.00*

Bead ring with clamp ring for series 30/31/32/35
Bead ring with clamp ring for series 30/31/32/35
Assembly group impact protection for machine lights Colour white Packing in polybag with tab

€0.00*

Two-piece gland with plug receptacle
Two-piece gland with plug receptacle
and cable entry M 20

€0.00*

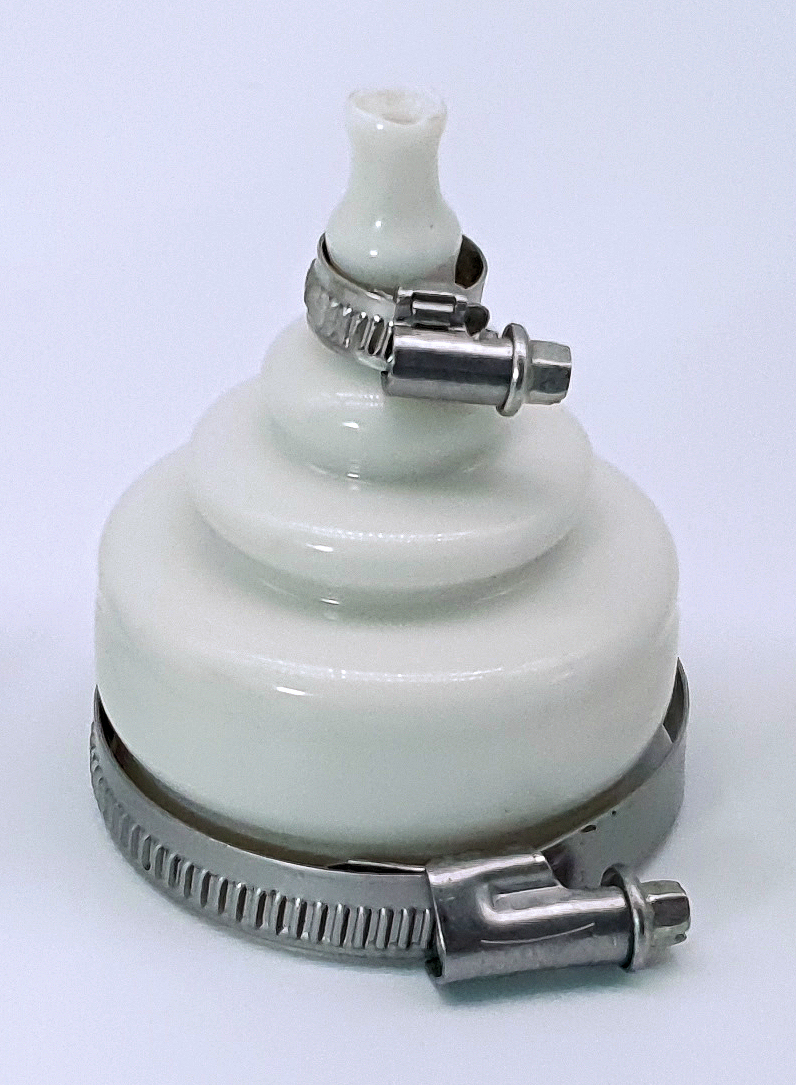

Folding bellows/ Sealing collar Passage f 30/31/32/35
Folding bellows/ Sealing collar Passage f 30/31/32/35
Assembly group bellows passage for machine lamps with diameter 68 mm Bellows and two clamps W5 colour white

€0.00*

Folding bellows/ sealing collar End piece f. S. 30/31/32/35
Folding bellows/ sealing collar End piece f. S. 30/31/32/35
Folding bellows end piece assembly for machine lights with diameter 68 mm Bellows and clamp W5 Colour white

€0.00*

Bracket steel galvanized H6 w. Rubber flange -> boroglass
Bracket steel galvanized H6 w. Rubber flange -> boroglass
Diameter 63 mm - 65 mm Clamp bandwidth 25 mm with rubber sleeve (black)Two holes 6.5 mm (mounting)Material steel galvanized

€0.00*

Holder H13 w. Rubber sleeve (black) for Borosili
Holder H13 w. Rubber sleeve (black) for Borosili
For diameter 64-65mm (borosilicate glass)Clamp bandwidth 20mm with rubber sleeve (black), 2 parts Strap straight with two holes 6,2mmMaterialsteel galvanized

€0.00*

Holder H12 w. Rubber sleeve (black) for borosilicate glass
Holder H12 w. Rubber sleeve (black) for borosilicate glass
For diameter 64 mm - 65mm (borosilicate glass)Clamp bandwidth 20mm with rubber sleeve (black), 2 pieces Bracket angled (short) with two holes 6,2mmMaterialstainless steel V4A

€0.00*
